 首頁 / 產品中心
產品中心

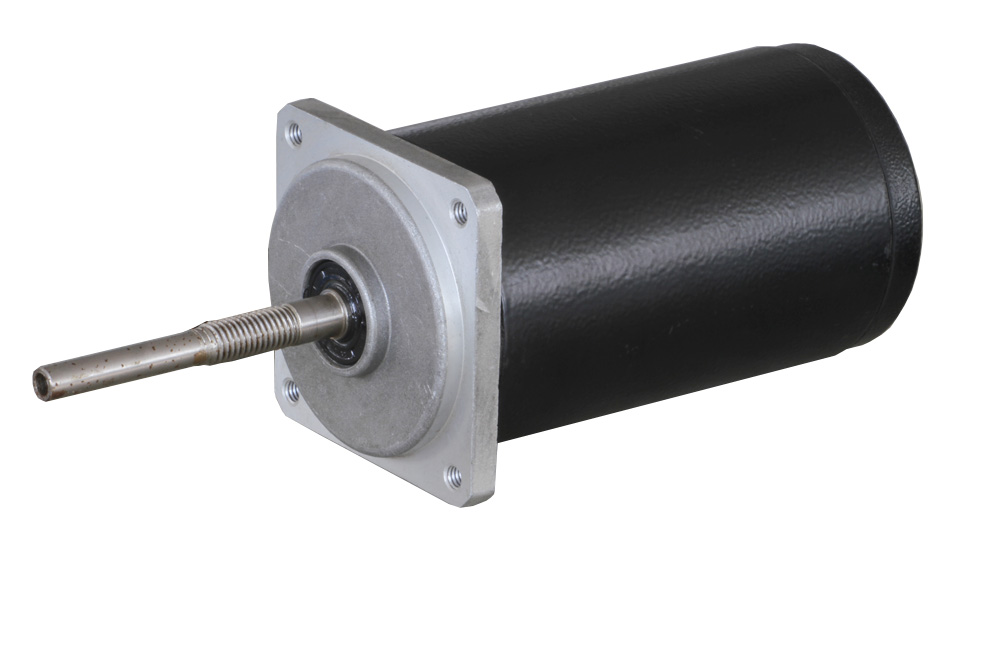

76ZYT系列
有刷直流電機
通用規范

Voltage Range

12 & 24v dc(240v also available)

Power Output Range

100w-150W

Speed Range

0-6000RPM

Operational Temperature

–20℃～+40℃

Insulation Class

F(consult us for class B)

Housing Type

Closed(ventil
規格介紹


規格參數

Part Number

Voltage

No load Current

No load Speed

Torque

Rated Current

Rated Speed

Rated Power

Length

Units

V

A

RPM

Nm

A

RPM

W

mm

76ZYT002

24

1.5

3850

0.4

9

3200

134.0

133.5

76ZYT005

12

0.9

3200

0.12

5

3088

39.0

115

76ZYT007

12

2.6

3850

0.4

16

3200

134.0

133.5

76ZYT008

24

0.9

3200

0.12

2.3

3088

39.0

115
