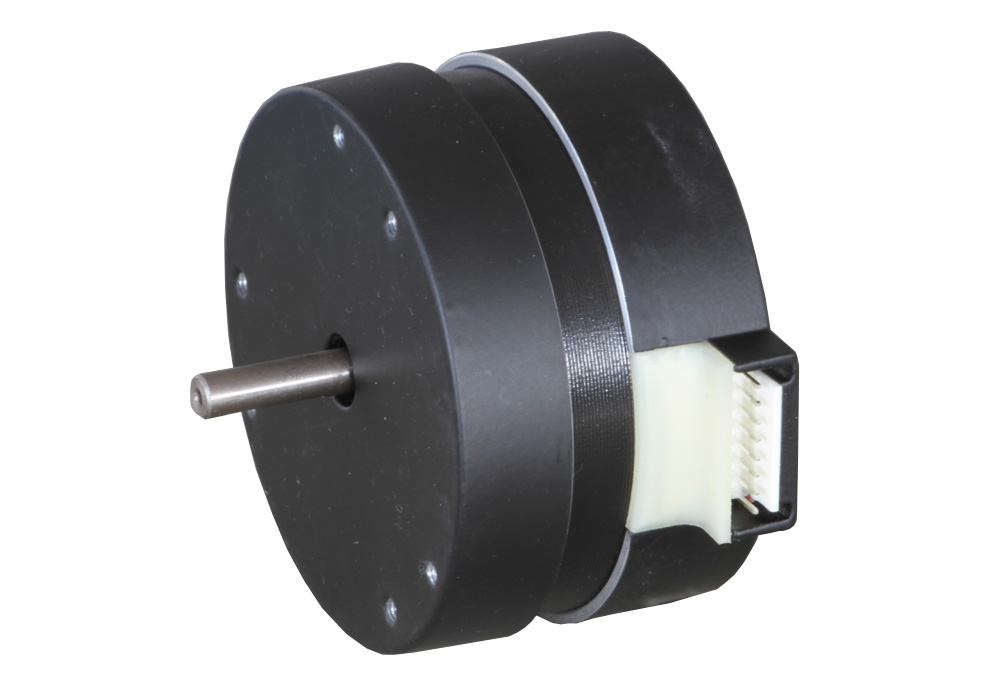

72SW系列 |
|
|
|
無刷直流電機
通用規(guī)范
|
Winding type |
Delta |
|
Hall effect angle |
120 degree electrical angle |
|
Shaft run out |
0.025mm |
|
Radial play |
0.025mm＠460g |
|
End play |
0.025mm＠4000g |
|
Max.radial force |
75N＠20mm from the flange |
|
Max.axial force |
15N |
|
Insulation class |
Class B |
|
Dielectric strength |
500VDC for one minute |
|
Insulation resistance |
100MΩMin.,500VDC | |
規(guī)格介紹
規(guī)格參數
|
Part Number |
Voltage |
No load Current |
No load Speed |
Torque |
Rated Current |
Rated Speed |
Torque
（MAX) |
Torque
Constant |
Rotor
Inertia |
Weight |
Length |
|
Units |
V |
A |
RPM |
Nm |
A |
RPM |
Nm |
Nm/A |
Kgmm2 |
Kg |
mm |
|
72SW01 |
30 |
0.45 |
7000 |
0.06 |
2.3 |
4900 |
0.18 |
0.1 |
6 |
0.35 |
40 |
|
72SW02 |
30 |
0.5 |
7000 |
0.07 |
2.3 |
4900 |
0.21 |
0.1 |
9.5 |
0.4 |
45 |
|
72SW01 |
30 |
0.55 |
7000 |
0.08 |
2.3 |
4900 |
0.24 |
0.1 |
13.8 |
0.5 |
55 | |
|
|
|
