 首頁 / 產品中心
產品中心

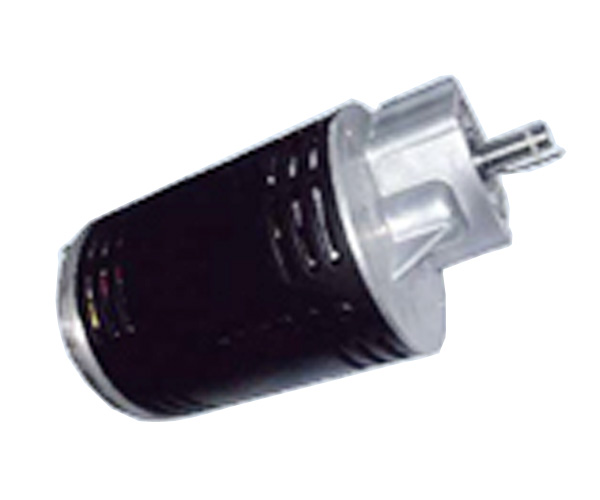

ZDM1560系列
齒輪電機
通用規范
Gearbox Housing Ruggedised die-cast Aluminium
Worm Gear Material Bronze,steel or glass-filled plastic
Lubrication Grease lubricated & sealed
Gearbox Output Bearing Type High quality ball bearing
Insulation Class F (contact us for class B)
Brush Type Integral or removable
Ambient Operating Temperature　 -20℃ to +40℃
規格介紹


規格參數
Part Number Voltage Torque Rated Current Rated Speed Rated Power Length
Units V Nm A RPM W mm
ZDM1560A 24 31 40 200 600 200
ZDM1560B 230 31 4.2 200 600 200
ZDM1560C 115 21 7.6 270 600 200
