 首頁 / 產品中心
產品中心

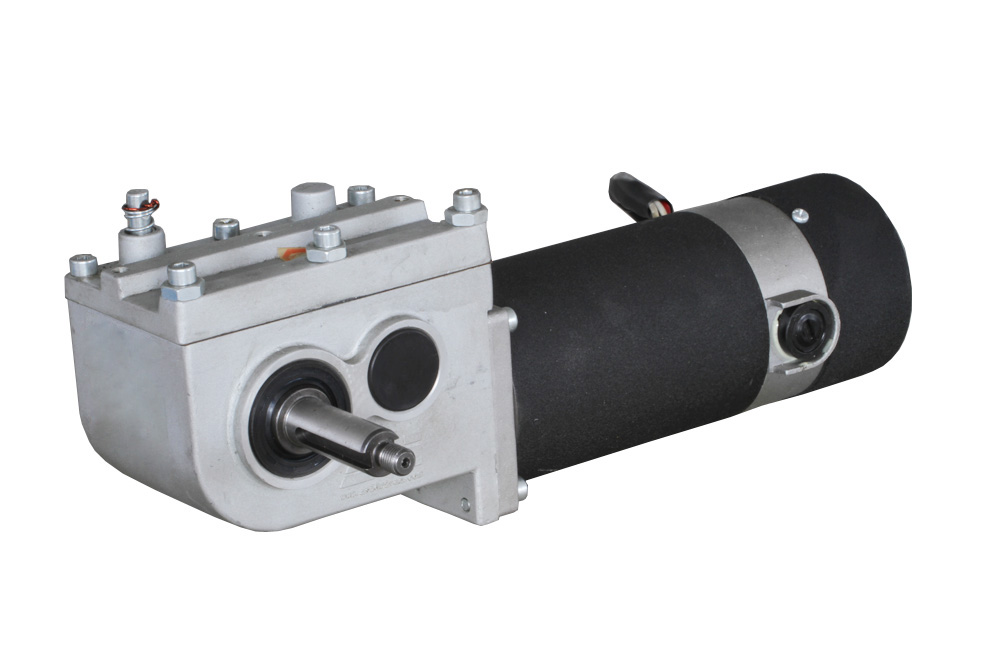

ZJD8032系列
齒輪電機
通用規范
Gearbox Housing Ruggedised die-cast Aluminium
Worm Gear Material Bronze,steel or glass-filled plastic
Lubrication Grease lubricated & sealed
Gearbox Output Bearing Type High quality ball bearing
Insulation Class F (contact us for class B)
Brush Type Integral or removable
Ambient Operating Temperature -20℃ to +40℃
規格介紹


規格參數
Part Number Voltage Ratio No load Speed Torque Rated Current Rated Speed Rated Power Length
Units V / RPM Nm A RPM W mm
ZJD8032A 24 32:1 175 15 20 141 600 203
ZJD8032B 24 32:1 160 15 18 131 900 203
ZJD8032B 24 32:1 105 12.5 11 84 600 203
