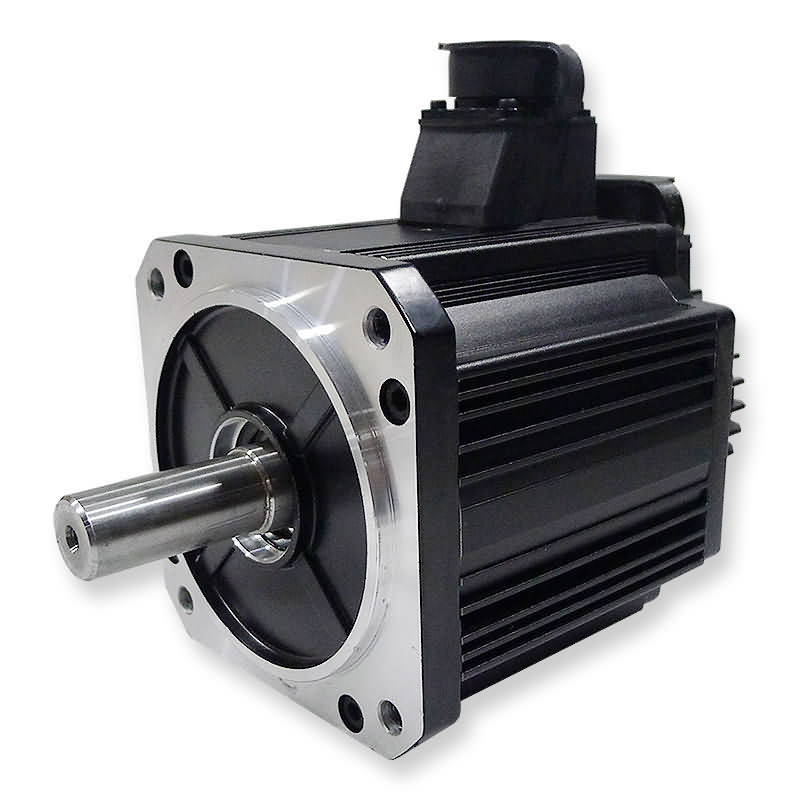

RG系列130毫米 |
|
|
|
|
參數介紹
規格參數
| 型號 |
Units |
RG425D3M3QM72 |
RG520D3M3QM79 |
RG525D2M3QM69 |
RG625D2M3QM69 |
RG7D725D3M3QM67 |
RG1010D3M3QM138 |
RG1025D2M3QM72 |
RG1525D2M3QM67 |
| 極對數 |
/ |
4P |
4P |
4P |
4P |
4P |
4P |
4P |
4P |
| 額定電壓 |
VAC |
220 |
220 |
220 |
220 |
220 |
220 |
220 |
220 |
| 額定功率 |
W |
1000 |
1000 |
1300 |
1500 |
2000 |
1000 |
2600 |
3800 |
| 額定力矩 |
N.m |
4 |
5 |
5 |
6 |
7.7 |
10 |
10 |
15 |
| 額定轉速 |
rpm |
2500 |
2000 |
2500 |
2500 |
2500 |
1000 |
2500 |
2500 |
| ****力矩 |
N.m |
12 |
15 |
15 |
18 |
22 |
30 |
30 |
45 |
| ****轉速 |
rpm |
5000 |
5000 |
5000 |
5000 |
5000 |
1800 |
6000 |
6000 |
| 額定電流 |
A |
4 |
4.2 |
5 |
6 |
7.5 |
4.5 |
10 |
13.5 |
| ****電流 |
A |
12 |
12.6 |
15 |
18 |
22.5 |
13.5 |
30 |
40.5 |
| 扭矩常數 |
N.m/A |
1 |
1.19 |
1 |
1.03 |
1.03 |
2.2 |
1 |
1.58 |
| 轉子慣量 |
Kg*cm² |
85 |
74 |
74 |
126 |
153 |
194 |
194 |
277 |
| 線電阻 |
Ω |
2.76 |
3.4 |
1.84 |
1.21 |
1.01 |
2.7 |
1 |
1.11 |
| 反電勢常數 |
V/Krpm |
72 |
79 |
69 |
69 |
67 |
138 |
72 |
67 |
| 電氣時間常數 |
ms |
2.32 |
2.3 |
2.66 |
3.26 |
3.8 |
3.26 |
3.36 |
3.2 |
| 機械時間常數 |
ms |
1.5 |
1.52 |
1.53 |
1.56 |
1.5 |
1.52 |
1.53 |
1.56 |
| 絕緣耐壓 |
/ |
2000V 5mA 1min |
2000V 5mA 1min |
2000V 5mA 1min |
2000V 5mA 1min |
2000V 5mA 1min |
2000V 5mA 1min |
2000V 5mA 1min |
2000V 5mA 1min |
| 熱絕緣等級 |
Class |
F |
F |
F |
F |
F |
F |
F |
F |
| 防護等級 |
/ |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
| 編碼器類型 |
/ |
2500ppr incremental encoder |
| 運行環境 |
/ |
-20℃ to 50℃ humidity＜90% |
| 重量 |
Kg |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |

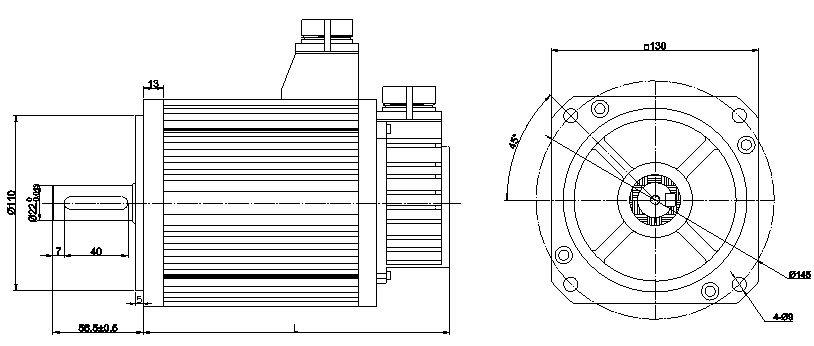

| 長度 |
|
159mm |
169m |
169mm |
177mm |
192mm |
215mm |
215mm |
258mm | |
|
|
|
